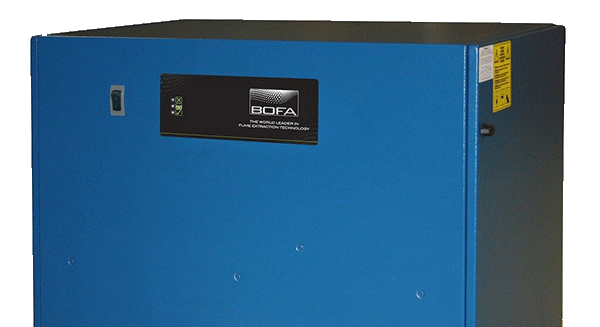

AD Base Z The dimensions of the unit allow the Zing to fit perfectly onto the extractor.
BOFA AD Base Z Overview
The Advantage Base Z has been designed specifically for the Epilog Zing laser engraver. The dimensions of the unit allow the Zing to fit perfectly onto the extractor, effectively doubling it up as a work station. The distinctive blue finish has been matched with the blue ends of the laser to give a stylish installation. The unit is also offered with an onboard air compressor to provide the laser with its air assist requirements. All units come complete with extraction hose kit and compressor link up on compressor models.
AD Base Z Features
Standard Features
- Low noise levels
- Low cost replacement filters
- Stylish colour matches the Epilog Zing laser engraver
- DeepPleat DUO pre filter
- Comes complete with extraction hose kit
- Reverse flow filter technology
Optional Features
- VOC gas sensors (Volatile Organic Compound)
- Onboard Compressor
Technical Specifications
AD Base Z Specifications
| Dimensions (H x W x D) | 30.3 x 29.9 x 22” |
| Cabinet Construction | Powder coated mild steel |
| Airflow / Pressure | 106cfm / 30mbar |
| Electrical Data | 115v 50/60Hz Full load current: 1.2 amps / 135w |
| Noise Level | < 55dBA* |
| Weight | 156lbs |
Deeppleat Pre Filter Specifications
| Surface Media Area | 12 m2 |
| Filter Media | Glass Fiber |
| Filter Media Construction | 2 Stage Maxi Pleat |
| Filter Housing | Zintec Mild Steel |
| Filter Efficiency | F8 (95% @ 0.9 microns) |
Combined Filter Specifications
| HEPA Filter Media | Glass Fiber |
| HEPA Media Contruction | Maxi Pleat Construction with Webbing Spacers |
| Filter Housing | Mild Steel |
| Surface Media Area | 2m2 |
| Treated Activated Carbon | 9kgs |
| Filter Efficientcy | 99.997% @ 0.3 microns |
Hose Kit
| 100-75mm kit |
| 1.2m 75mm Flexible Hose |
| 1 x 75mm Connection Cuff |
| 1 x 100 - 75mm Reducer |
