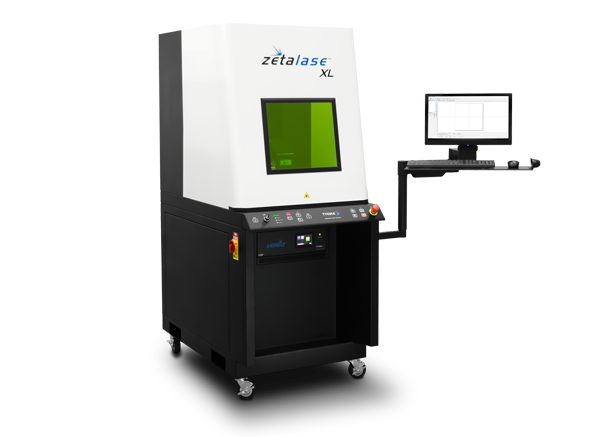

Zetalase™ XL Fiber Laser Marking System

By TYKMA / Electrox

More power and space for maximum flexibility.

Zetalase™ XL can do it all!

Available with a 20, 50, 70, or 100-watt laser source.




Get a Quote

Zetalase™ XL Fiber Laser Marking Machine

An expansive work area and choice of lenses makes Zetalase™ XL our most flexible system yet.

The new Zetalase™ XL features the most expansive work area of our entire product range. Available in multiple configurations to mark tall and/or large components as well as large fixtures of parts. A front vertical pneumatically actuated door maximizes operator ergonomics. Programmable Z-Axis capability as a standard option allows for a quick and easy changeover between components. A choice of laser power and a variety of large focal lenses provide the ability to solve any application.

Zetalase™ XL features an onboard PC and a gas assisted swing arm with monitor, keyboard and mouse allowing operators to easily design, edit and select laser etching marking programs.

Programming with our Minilase™ Pro SE software enables you to easily mark text, barcodes, serial and date codes, graphics and more.

Utilize our full size rotary device for 360° radial part marking.

System Features

  • Air-Cooled, Maintenance Free Design for Industrial Applications
  • MOPA Fiber Laser Engine from 20 to 50W with Selectable Waveforms
  • Front Vertical Pneumatically Actuated Part Loading Door with Built in Safety
  • Programmable Focal Height Adjustment
  • 24” x 30” T-Slot Work Surface and Heavy Duty Membrane Control Pendant
  • Integrated PC with Monitor/Keyboard/Mouse Mounted on an Ergonomic Gas Assisted Swing Arm
  • Side Access Panel with Ethernet, USB, and Service Connection Access
  • Auto Mode with Automatic Marking Start Upon Door Closure
  • Available with a Variety of Focal Lenses from 160mm to 420mm
  • Ideal for Marking all Metals, Carbide, Painted/ Anodized Materials & Most Plastics
  • Comprehensive 3-Year Warranty

3D Laser Marking Capabilities

Technical Specifications

System Dimensions 32″W x 52″L x 74″H
System Weight Approx. 500lbs
Standard Marking Field 100mm x 100mm (160S lens)
(3.93″ x 3.93″)
Available Marking Lens
Upgrade and Marking Fields
254S (140mm x 140mm, 5.5″ x 5.5″)
254L (165mm x 165mm, 6.5″ x 6.5″)
330L (200mm x 200mm, 7.87″ x 7.87″)
420L (260mm x 260mm, 10.2″ x 10.2″)
Standard Maximum Part Size (160S Lens) 30″W x 24″L x 20″H or
(mm) 762W x 609L x 508
15″W x 42″L (Using Center Wall Opening)
(mm) 381W x 1,066L (Using Center Wall Opening)
Maximum Part Height Lens Upgrade (254S) 15.65″/396mm
(254L) 12.5″/317mm
(330L) 11.75″/298mm
(420L) 6″/152mm
Laser Type Ytterbium Fiber
Wavelength (nm) 1062 +/- 3nm
Wattage 20W / 30W / 50W
Pulse Duration (20/50W) Selectable, 260ns or 40ns
(30W) 29 Selectable from 220ns – 15ns
Operative Ambient Temperature Range 45° F to 110° F
Frequency Range 1kHz – 500kHz (20/50W)
1kHz-1,000kHz (30W)
Input Power Power Sensing 110-240VAC 50/60Hz
Aiming Beam (2) Class 2M Red Diode 635nm
PC Integrated Windows PC
PC Connection N/A, PC Integrated
Available Ports Diagnostic/USB/VGA/Ethernet
Cooling Air Cooled
Fiber Cable Length N/A
Warranty 36 Month Comprehensive Unlimited Hours
Documentation

USB Drive / Quick Start Guide
Video Tutorials / Software Manual
Safety Manual / Laser Settings Manual
(All Manuals Provided in Digital Copy)
