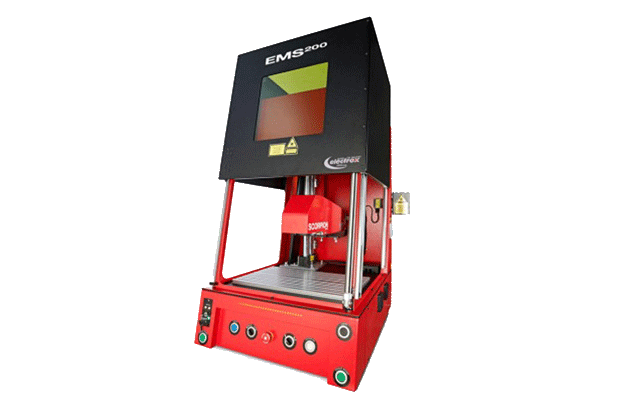

EMS200 WorkstationEasy-to-use workstation, designed for medium to large part marking
EMS200 Workstation Overview
- Ergonomic workstation with integrated laser
- Wraparound door design offers flexible access
- Programmable Z-axis for automatic focus height
control as standard - Easy to use with minimum set-up requirements
- Compatible with all Electrox laser markers
MainFeatures
Additional Options:
|
|
|
|
|
TechnicalSpecifications
Workstation Specifications
| Dimensions (L x W x H) | Height (Door Closed) 983mm (38”), Height (Door Open) 1229mm (48”), Length 600mm (23”), Width 892mm (35”) |
| Weight | 75 - 80 Kgs (165 - 176 lbs) |
| Compatibility | Compatible with all Electrox lasers |
| Operating temperature | 15°C to 40°C (59°F to 104°F) non-condensing |
| Construction | Welded steel |
| Site Requirements | Solid Level Surface |
| Supply requirements | Power 110/240V AC Single phase, 1.7KvA, 50 or 60Hz, Standard Factory Clean Supply 5 Bar Compressed Air |
| Z-Axis travel | 240mm (9.5”) |
Marking Area Parameters
| Lens (mm) | Max.square Marking Field (mm) | (øD) Max. Marking Diameter (mm) |
(Fd) Working Distance (mm) |
Spot Size (mm) |
| 100 | 60 | 85 | 106 | 30 μm |
| 163 | 100 | 140 | 184 | 50 μm |
| 254 | 160 | 220 | 323 | 80 μm |
