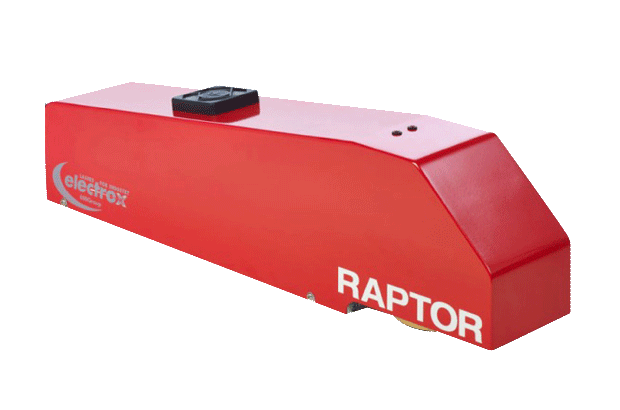

Electrox Raptor Fiber LaserThe Electrox Raptor is a cost-effective laser marking, etching or engraving system
Raptor Fiber Laser Overview
High resolution marking of metals, plastics and many other materials
- Cost-effective solution for high resolution
marking on metals, plastics and other materials - In-built 4 axis control, which is easily integrated
into automated production systems or into one
of Electrox’s stand-alone workstations - Extremely low operational cost and virtually
maintenance free - Can be programmed easily and quickly with
user friendly Windows™ software
Main FeaturesPowerful, high-speed, accurate CO2 laser marking solution
| Beam exit: | 90º/0º |
| Software: | SCRIBAEVO software |
| Optical configuration: | Beam expander; focal lens 100x100 (std) |
| Motion Control: | Four axis scanner |
| Connection: | Multiple I/O interface |
TechnicalSpecificationsPowerful, high-speed, accurate CO2 laser marking solution
Product Selection Parameters
| Laser | Power (W) |
| Raptor 10 | 10 |
| Raptor 20 | 20 |
Marking Area Parameters
| Flat Field Focal Length (mm) | Max.square Marking Field (mm) | (øD) Max. Marking Diameter (mm) | (Fd) Working Distance (mm) | Spot Size (mm) |
| 100 | 60 | 85 | 106 | 30µm |
| 163 | 100 | 140 | 184 | 50µm |
| 254 | 160 | 220 | 323 | 80µm |
| 350 | 220 | 310 | 432 | 110µm |
| 410 | 250 | 350 | 512 | 130µm |
Marking Area Parameters
| Laser Type | EF Technology | Pulse duration | 25ns (10kHz) |
| Wavelength | 1064nm | Power stability | ±3% |
| Pulse frequency | CW, 0.1–150kHz | Beam quality | <3mm.mrad (M2 <2) |
| Max. marking speed | 10,000 mm.s-1 | Control electronics | 19 inch rack mounted (5U) module |
| Operating temperature | 10W: 617.5x194x186mm 30W:658x236x237mm | Optical unit protection | IP52 |
| Max. laser average power | 0.2mJ (I) and 0.4mJ (II & II*) | Supply requirement | Single phase + Earth, 50 or 60Hz; 100 - 240V. Power 250W |
| Max. pulse energy | 10kW (I) 20kW (II & II*) | Weight | Laser 12Kg, Control Unit 21Kg |
