Electrox Razor CO2 LaserUltimate high-speed CO2 laser for wood, plastics, paper, glass, foils and composite substrates
Razor CO2 Laser Overview

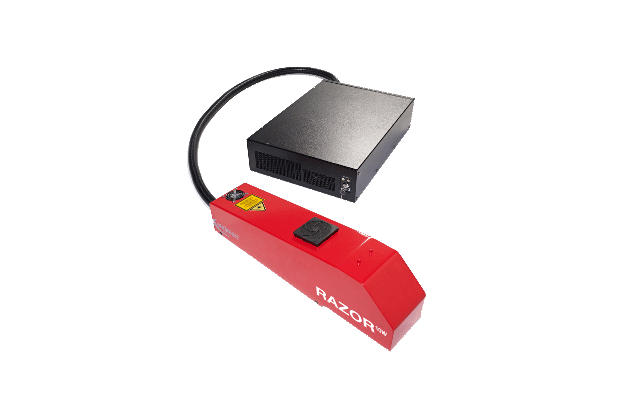

The Electrox Razor is a compact, high precision CO2 laser marker, etcher and engraver optimised for marking organic materials
- Perfect for high resolution marking operations on wood, plastics, paper, glass, foils and composite substrates
- Inbuilt 4 axis control
- Easy integration with automated production systems or any of Electrox’s workstations
- Very low operating costs and low maintenance
- Easy to set up, easy to use with minimal training required
- User-friendly Windows™ control software
- Optimal marking, etching and engraving performance
Main FeaturesPowerful, high-speed, accurate CO2 laser marking solution
| Beam exit: | 90º/0º |
| Software: | SCRIBAEVO software |
| Optical configuration: | Beam expander; focal lens 100x100 (std) |
| Motion Control: | Four axis scanner |
| Connection: | Multiple I/O interface |
TechnicalSpecificationsPowerful, high-speed, accurate CO2 laser marking solution
Product Selection Parameters
| Laser | Power (W) |
| Razor 30 | 30 |
| Razor 55 | 55 |
Marking Area Parameters
| Flat Field Focal Length (mm) | Max.square Marking Field (mm) | (øD) Max. Marking Diameter (mm) | (Fd) Working Distance (mm) | Spot Size (mm) |
| 100 | 60 | 85 | 79 | < 225 µm |
| 150 | 94 | 130 | 128 | < 337 µm |
| 250 | 154 | 218 | 236 | < 562 µm |
| 515 | 250 | 350 | 488 |
Marking Area Parameters
| Laser Type | C02 | User interface | Touch screen/PC |
| Wave length | 10.64nm | Control electronics | Integrated |
| Max. marking speed (high-speed model only) | 5,000mms-1 | Supply requirement | 10W: 125V / 230V 50/60 Hz, Single phase + Earth 330 VA 30W: 125V / 230V 50/60 Hz, Single phase + Earth 660 VA |
| Operating temperature | 16°C - 35°C non-condensing | Weight | 56kg |
| Dimensions | 10W: 617.5x194x186mm 30W:658x236x237mm |
