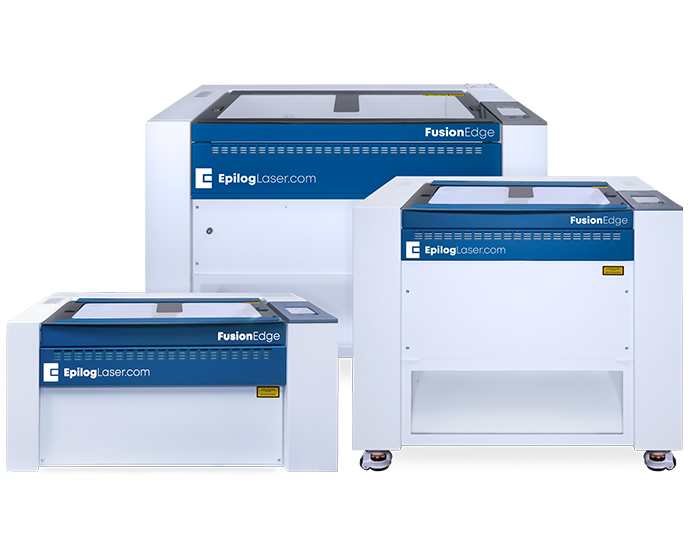

Epilog Fusion Edge Laser Series Group

Epilog Fusion Edge Lasers

By Epilog Laser

Epilog's professional lasers with top-of-the-line high-quality engraving and cutting, innovative IRIS™ Camera positioning system, and workflow focused Software Suite with Job Time Estimator.

Epilog Fusion Edge Laser Machines

The Fusion Edge laser series takes our highest-quality engraving technology and incorporates it into smaller-format systems which allow customers to get the latest technology in a transportable format. The Fusion Edge machines feature a touch-screen display panel, on-screen artwork positioning with our IRIS™ camera system, and Epilog Software Suite with Job Time Estimator.


Fusion Edge 12 Fusion Edge 24
Work Area 24" x 12" x 7"
(610 x 305 x 178 mm)
24" x 24" x 10"
(610 x 610 x 254 mm)
Laser Options CO2 or Fiber CO2
CO2 30, 40, 50, 60 watts
30, 40, 50, 60, 80 watts
Fiber 30 watts -
IRIS™ Cameras 1 overhead 2 overhead

Features: Benefits of Epilog’s Fusion Edge Laser System

The Fusion Edge laser engraving and cutting machines from Epilog Laser combine our top-of-the-line technology and our latest features in a compact desktop format, leveraging over three decades of laser machine design and manufacturing experience to create a powerful and truly modern system.

High speed engraving in a compact format.

Highest-Speed Engraving

The Fusion Edge’s 120 IPS engraving speed and 5G acceleration provide the fastest engraving in the industry in a compact format.

Fusion Edge IRIS Camera

IRIS™ Camera Positioning

An overhead camera provides an real-time picture of the working area for accurate artwork placement. Drag and drop your artwork on screen for the fastest work processing.

Fusion Edge touchscreen controls

Touch Screen at the Laser

Select between jobs, auto focus the laser, and rerun jobs at the touch of a button from the easy-to-use touch screen interface right at the laser.

Epilog Laser headquarters building

Made in the USA

Proudly designed, engineered, and manufactured in our Golden, CO headquarters at the base of the Rocky Mountains.

Ethernet, USB, and Wireless connections

Network Your Laser Across Your Business

The Fusion Edge features built-in Ethernet, USB, and Wireless options for networking your laser.

Fusion Edge Safeguard features

SAFEGUARD™ Features

Keep the mechanics of your laser machine cleaner than ever before with side enclosures, a fully covered x-axis assembly, and covered lens assembly.

Fusion Edge laser head air assist

Air Assist

The air assist directs air directed through the cone lens assembly to remove heat and combustible gases from the point of laser contact.

Radiance Beam Enhancing Optics diagram

Radiance™ Optics

The beam enhancment technology is standard equipment and provides the highest resolution engraving across the entire table.



CO2 laser tube

CO2 Waveguide Laser Tubes by Epilog

All-metal tube design provides higher beam quality and longer life with low recharge costs.



Fusion Edge Epilog Software Suite

1 GB Memory in the Machine

Improve job management and data integrity with 1GB of RAM. Save your most run jobs right at the laser.

Steel bearings

Long-Life Steel Bearing

A dual block design provides the most rigidity and reduced vibration without the inevitable wobble and replacement of plastic bearings.

Accessories for the Fusion Edge Laser Machines

Rim-style rotary device

Rim-Style Rotary Attachment (Coming Soon)

The Rim-Style rotary attachment adds the ability to engrave bottles, glasses, flashlights, or any other cylindrical item. The Fusion Edge rotary attachment is as easy to setup as placing your product on the rotary, raising or lowering the scissor lift to level the engraving area, and printing to the laser.

3-Jaw Chuck Rotary Attachment (Coming Soon)

With the 3-Jaw Chuck rotary, objects are clamped into the device's 3-jaw chuck, allowing you to rotate cylindrical or oddly-shaped items in applications that demand more precise alignment.

3-jaw chuck rotary device
air compressor for the air assist feature for clean cuts

Air Assist Pump

Blows a constant stream of air on the cutting area. Epilog's optional Air Assist Pump is available to work with the included Air Assist features of the laser systems. Direct a constant stream of air to your cutting surface to remove heat and combustible gases from the work area.

This high-quality air compressor unit feeds 30 psi of air through the Air Assist structure, giving you the best cutting results available. The rubber vibration-dampening feet reduce the noise level of the compressor, and connection is a breeze with our quick-connect inlet and outlet ports on the compressor and the laser system.

Fusion Edge Stand (Coming Soon)

An easy-to-use stand for moving your laser around your workspace, this wheeled cart is specially designed for the Fusion Edge laser machine. It provides you greater versatility within your work environment and the ability to easily transport your machine to different locations.

stand accessory for the fusion edge laser machines
fusion edge lens options for different engraving techniques

Additional Fusion Edge Lens Options (Coming Soon)

In addition to the 2.0" lens, we offer special lenses for specific applications.

1.5" Lens: Highest-Resolution Engraving (Coming Soon)

Although the standard 2.0 inch lens provides amazing detail, our 1.5-inch lens assembly is designed for the highest-resolution engraving and etching of extremely small fonts.


4.0" Lens: Cutting Thicker Materials and Inside Deep Areas (Coming Soon)

The 4.0 inch lens produces a focused beam over a longer vertical distance, which makes it ideal when engraving within a recessed area of a product, such as inside a bowl or plate. The lens is also used for cutting through very thick materials.

PhotoLaser Plus Software

PhotoLaser Plus takes photo engraving with your Epilog Fusion Edge laser to the next level by easily processing photos for engraving on all types of materials. Epilog Laser has partnered with CADLink to bring you the industry’s best photo processing software: PhotoLaser Plus. The easy-to-use software interface and powerful photo processing tools allow you to create the highest-quality photo engravings in the industry.

PhotoLaser Plus software and engraved photo samples

Epilog Fusion Edge Technical Specifications

Fusion Edge 12 Fusion Edge 24
Work Area 24" x 12"
(610 x 305 mm)
24" x 24"
(610 x 610 mm)
Maximum Z-Depth 7" (178 mm) 10" (254 mm)
Laser Tube Wattage CO2 - 30, 40, 50, or 60 watt
  • air-cooled, metal/ceramic tube, 10.6 micrometers
- OR -

Fiber - 30 watt
  • air-cooled, includes collimator, 1064 nm, Beam quality: M2 < 1.1
CO2 - 30, 40, 50, 60, or 80 watt
  • air-cooled, metal/ceramic tube, 10.6 micrometers
Software Epilog Laser Software Suite: Laser Dashboard™ & Epilog Job Manager™
Memory Multiple files, up to 1 GB total. Engrave any file size.
Operating Modes Optimized Raster, Vector, and Combined modes
Motion Control High-speed, continuous-loop, brushless DC servo motors using rotary encoding technology for precise positioning
X-Axis Bearings Ground & polished stainless steel, Teflon-coated, self-lubricating bearings.
Belts Advanced B-style double-wide Kevlar precision drive belts.
Resolution Fully-flexible and user-controlled from 75 – 1200 dpi
Speed and Power 120 IPS (3.05m/s) with 5G acceleration. Computer-controlled in .001 increments up to 100%. Color mapping feature links Speed, Power, Frequency, and Raster/Vector mode.
Print Interface USB, Wireless, and 10Base-T Ethernet. Windows 7/8/10 compatible.
Size (W x D x H) 39.5" x 26.5" x 17.9"
1003 x 673 x 455 mm
41.52" x 32.81" x 38.04"
1055 x 834 x 967 mm
Weight 138 lbs (63 kg) 225 lbs (102 kg)
Electrical 110 to 240 volts, 50 or 60 Hz, single phase
Ventilation 350-400 CFM (595-680 m3/hr) external exhaust to outside or internal filtration unit required. One output port, 4" (102 mm) diameter.
Safety Class 2 Laser Product – 1 mW CW MAXIMUM 600 – 700 nm
