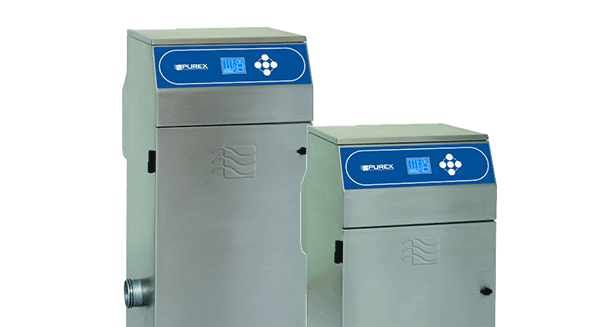

Model 400 Features
Standard Features
- Auto Electronic Flow Control Maintains A Constant Extraction Rate Even As The Filter Blocks
- Adjustable Airflow
- Clear And Informative Graphic Display
- Gas & Particle Sensors On The Exhaust
- Low Capital And Running Costs
- Submicronic (HEPA) Filtration Removes 99.99% Of Particles Down To 0.3 Microns
- Activated Carbon Filtration Removes Harmful Gas
- Simple To Install And Quiet In Operation
- Interface With Other Equipment; i.e. Lasers
- Easy To Relocate
- Precision Made From Stainless Steel
- High Performance Brushless Motors
- Includes A Connection Kit
Technical Specifications
Model 200 Specifications
| Voltage | 120v | 230v |
| Volume Part Number | 0LX2101D | 0LX2100D |
| Vacuum Part Number | 081026D | 080026D |
| Wattage | 0.46kW | 0.46kW |
| Frequency | 50Hz / 60Hz | 50Hz / 60Hz |
| Cabinet Height (Includes Castors) | 27.9 in (710mm) | 27.9 in (710mm) |
| Cabinet Width | 17.5 in (445mm) | 17.5 in (445mm) |
| Cabinet Depth | 20.78 in (528mm) | 20.78 in (528mm) |
| Cabinet Weight | 110 lbs (50kg) | 110 lbs (50kg) |
| Sound Level | <60dBa | <60dBa |
| Airflow | 400m3/h | 400m3/h |
Included Filter Specifications
| Main Filter | HEPA/Chemical |
| Pre-filter | F5 Pad |
Model 400i Features
Standard Features
- Automatic Electronic Flow Control – Maintains A Constant Extraction Rate Even If The Filter Blocks
- Adjustable Airflow
- Clear And Informative Graphic Display
- Gas And Particle Sensors On The Exhaust
- Low Capital And Running Costs
- Quick Change Patented Labyrinth Pre-Filters Deliver Longer Filter Life
- Submicronic (HEPA) Filtration Removes 99.997% Of Particles Down To 0.3 Microns
- Activated Carbon Filtration removes Harmful Gas
- Interface With Other Equipment; i.e. Lasers
- Simple To Install And Quiet In Operation
- Easy To Relocate And Precision Made From Stainless Steel
- High Performance Brushless Motors
- Includes A Connection Kit
- *400I Dye Sublimation Includes A Glycol Condenser Unit
Technical Specifications
Model 400i Specifications
| Voltage | 120v | 230v |
| Volume Part Number | 0LX2121D | 0LX2110D |
| Vacuum Part Number | 081026iD | 080026iD |
| Wattage | 1.2kW | 1.2kW |
| Frequency | 50Hz / 60Hz | 50Hz / 60Hz |
| Cabinet Height (Includes Castors) | 42.1 in (1070mm) | 42.1 in (1070mm) |
| Cabinet Width | 18.3 in (465mm) | 18.3 in (465mm) |
| Cabinet Depth | 20.78 in (528mm) | 20.78 in (528mm) |
| Cabinet Weight | 132 lbs (60kg) | 132 lbs (60kg) |
| Sound Level | <52dBa | <55dBa |
| Airflow | 400 m3/h | 400 m3/h |
Included Filter Specifications
| Main Filter | HEPA/Chemical |
| Pre-filter | F5 Pad |
