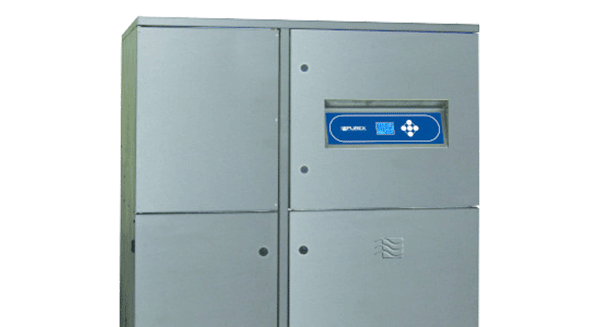

Model 5000i Features
Standard Features
- Automatic Electronic Flow Control – Maintains A Constant Extraction Rate Even As The Filter Blocks
- Adjustable Airflow
- Clear And Informative Graphic Display
- Gas And Particle Sensors On The Exhaust
- Low Capital & Running Costs
- Quick Change Patented Labyrinth Pre-Filters Deliver Longer Filter Life
- Submicronic (HEPA) Filtration Removes 99% Of Particles Down To 0.3 Microns
- Activated Carbon Filtration Removes Harmful Gas
- Simple To Install And Quiet In Operation
- Welded Stainless Steel Construction
- Remote Machine Interface (Optional)
- Gas/Particulate Safety Sensor
- Cabinet Height (Incl. Castors) 1804 Mm
- Cabinet Depth: 892 mm
- Cabinet Width: 1250 mm
- Cabinet Weight: 400kg
- Wattage 7.4kW; Frequency 50Hz/60Hz
Technical Specifications
Model 5000i Specifications
| Voltage | 220v | 400v |
| Wattage | 7.5kW | 7.5kW |
| Frequency | 50Hz / 60Hz | 50Hz / 60Hz |
| Cabinet Height (Includes Castors) | 70.86 in (1800mm) | 70.86 in (1800mm) |
| Cabinet Width | 49.2 in (1250mm) | 49.2 in (1250mm) |
| Cabinet Depth | 35.1 in (892mm) | 35.1 in (892mm) |
| Cabinet Weight | 881 lbs (400kg) | 881 lbs (400kg) |
| Sound Level | <65dBa | <65dBa |
| Airflow | 5000m3/h | 5000m3/h |
Included Filter Specifications
| Main Filter | HEPA |
| Main Filter | Chemical |
| Pre-filter | F8/F9 Labyrinth |
| Pre-filter | EU5 Pleated Bag |
| Pre-filter | G4 Pad |
