Minilase XL TYKMA fiber laser

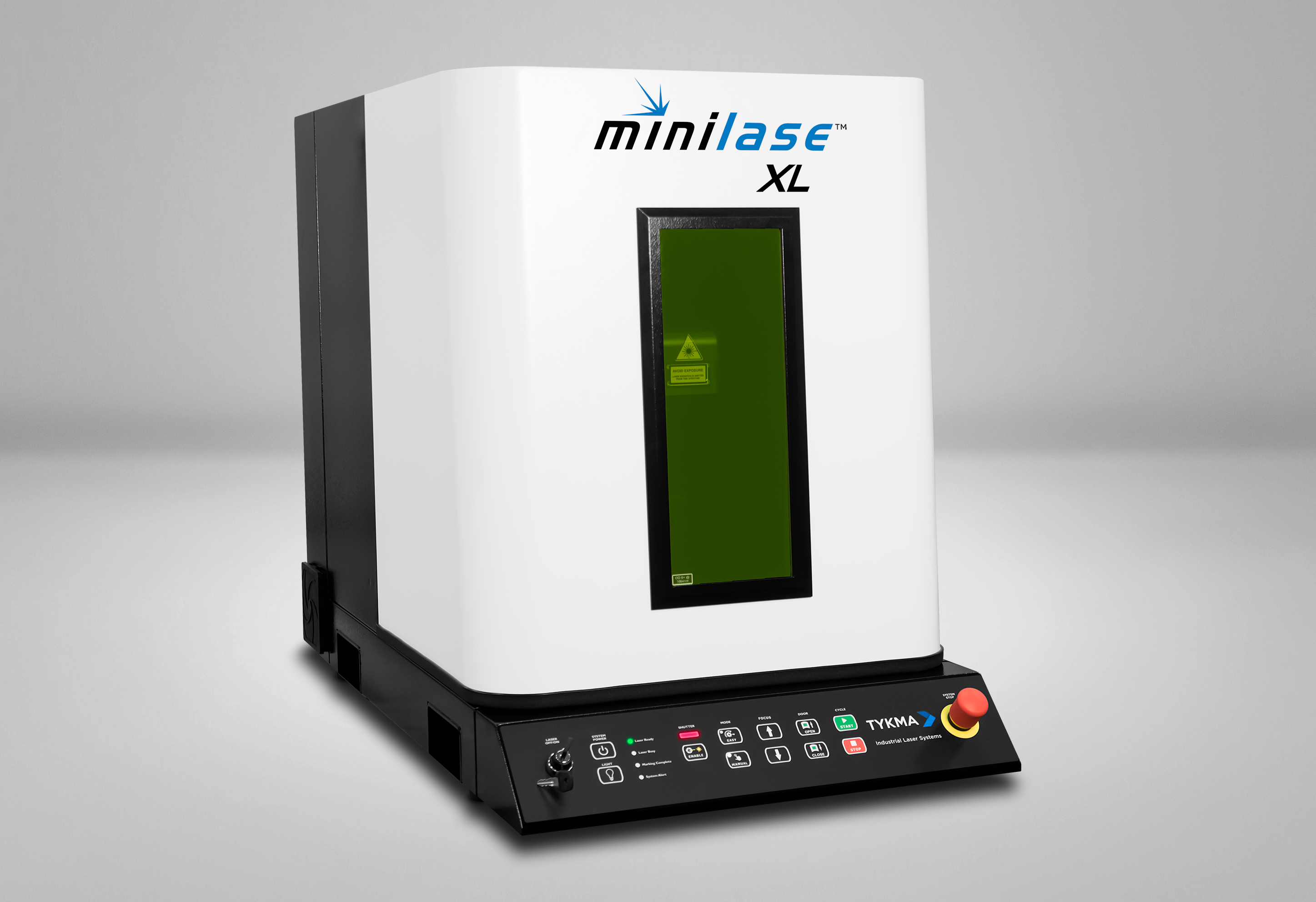

Minilase™ XL Laser Marking System

By TYKMA / Electrox

Minilase™ XL offers a larger workspace and an open interior for maximum flexibility in a desktop solution. It is equipped with our ergonomic features such as the three-side pneumatic vertical door, power focal height adjustment and auto-mode for high volume applications.

Available with a 20, 50, or 70 watt laser source.

Get a Quote

Product Information

Minilase™ XL marks all metals, most plastics, carbide, anodized aluminum, painted/coated materials and more. Powerful MOPA fiber laser technology enhances the marking capabilities over basic q-switched fiber laser systems. Selectable pulse durations allow for the processing of a wider variety of materials and substrates.

Our systems save you operating costs in the long run over obsolete and larger scale laser marking systems. Minilase™ XL is air cooled, maintenance-free and includes a comprehensive three year warranty.

System Features

  • Multi-Waveform laser upgrades
  • Rotary devices for 360 radical part marking
  • Programmable focal height upgrade
  • Fume and dust extraction
  • Focal lenses
  • Component fixtures
  • Laser safety glasses
  • And more

Technical Specifications

System Dimensions

24”W x 42.5”L x 33.5”H / 200lbs (mm) 610W x 1,079L x 851H / 91kg

Standard Marking Field

20”W x 12.5”L x 12.6”H (mm) 508W x 317L x 320H

Using rear cabinet space 11”W x 27”L x 12.6”H (mm) 279W x 685L x 320H

Available Marking Lens Upgrade and Marking Field

254S (5.5” x 5.5”, 140mm x 140mm)

Laser Type

Ytterbium Fiber

Wavelength (nm)  1062nm+/-3nm
Wattage 20W / 50W
Frequency Range 1 – 500kHz
Pulse Duration

Selectable, 260ns or 40ns

Operative Ambient Temperature Range 7 – 36° C /  45 – 97° F
Cooling Air Cooled
Fiber Cable Length N/A
Input Power Power Sensing 110-240VAC 50/60Hz
Aiming Beam (2) Class IIM Red Diode (635nm)
PC Laptop/Desktop PC Required
(Not Included)
PC Connection USB
Available Ports Diagnostic
Warranty 36 Month Comprehensive, Unlimited Hours
Documentation

System & Software Manuals Laser Settings Guide / Safety Manual Video Tutorials

Included Accessories

Laser Enable Keys (2) / USB Cable Power Cable / USB Drive Class 4 Service Override Key
