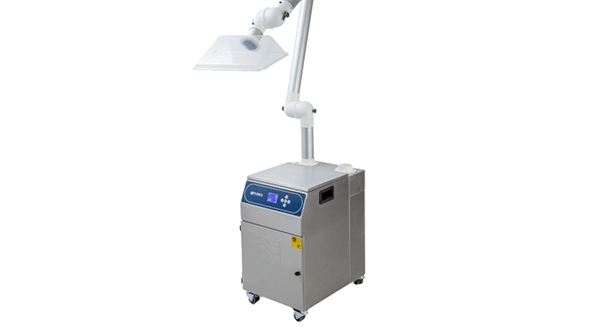

Model 650 Features
Standard Features
- Automatic Electronic Flow Control – Maintains A Constant Extraction Rate Even If The Filter Blocks
- Adjustable Airflow
- Clear And Informative Graphic Display
- Gas And Particle Sensors On The Exhaust
- Low Capital And Running Costs
- Quick Change Patented Labyrinth Pre-Filters Deliver Longer Filter Life
- Submicronic (HEPA) Filtration Removes 99.997% Of Particles Down To 0.3 Microns
- Activated Carbon Filtration removes Harmful Gas
- Interface With Other Equipment; i.e. Lasers
- Simple To Install And Quiet In Operation
- Easy To Relocate And Precision Made From Stainless Steel
- High Performance Brushless Motors
- Includes One 75Mm Ss Arm And One Clear Hood 420Mm X 320 mm
- Additional Arm Item # 120197
Technical Specifications
Model 650 Specifications
| Voltage | 120v | 230v |
| Part Number | 080470D | 080465D |
| Wattage | 0.36kW | 0.36kW |
| Frequency | 50Hz / 60Hz | 50Hz / 60Hz |
| Cabinet Height (Includes Castors) | 28.3 in (720mm) | 28.3 in (720mm) |
| Cabinet Width | 17.5 in (445mm) | 17.9 in (455mm) |
| Cabinet Depth | 24 in (610mm) | 24 in (610mm) |
| Cabinet Weight | 121 lbs (55kg) | 121 lbs (55kg) |
| Sound Level | <60dBa | <60dBa |
| Airflow | 645m3/h | 645m3/h |
Included Filter Specifications
| Main Filter | HEPA/Chemical |
| Pre-filter | F6 Labyrinth |
