Zetalase XLT TYKMA fiber laser

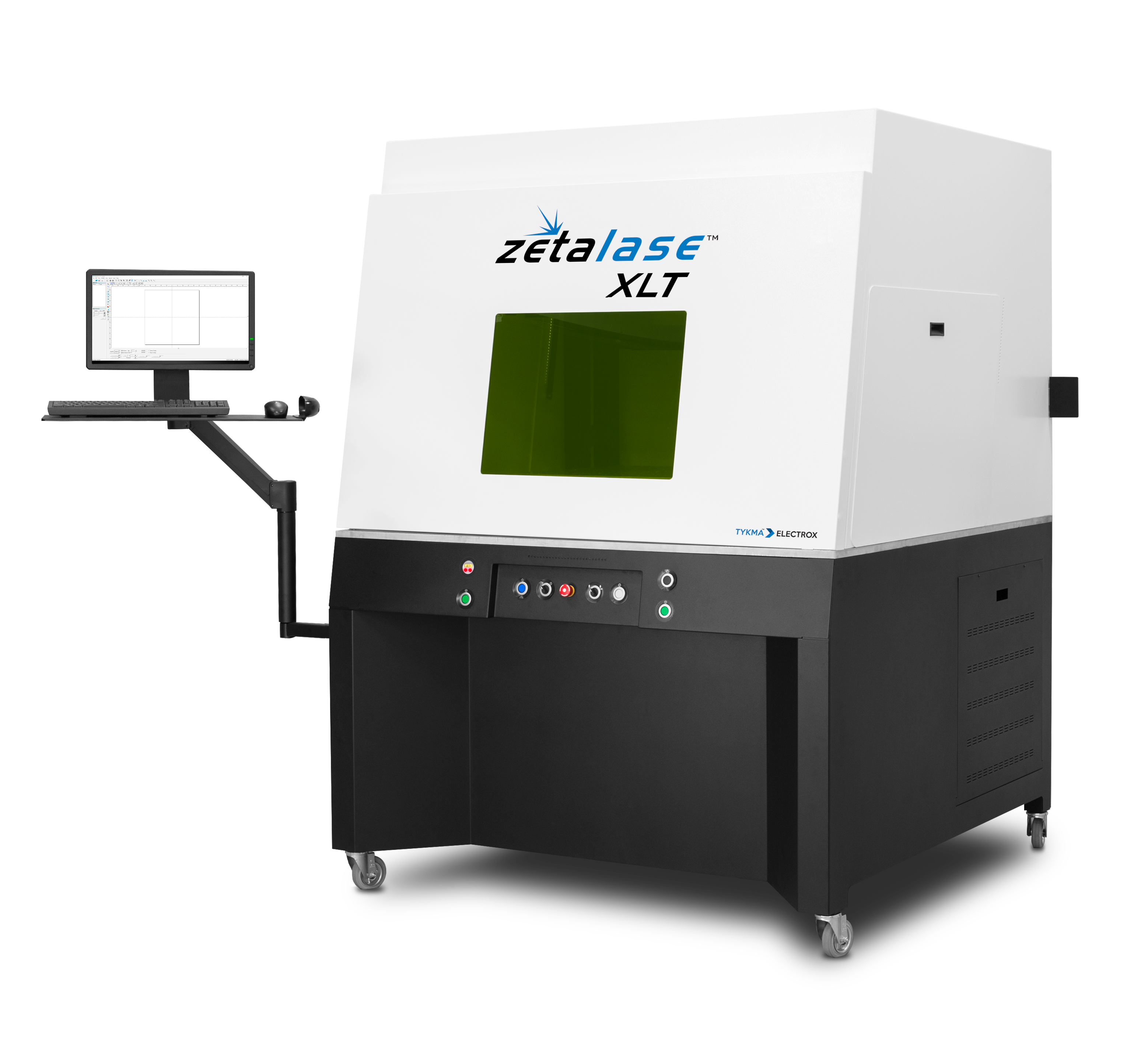

Zetalase™ XLT Fiber Laser Marking System

By TYKMA / Electrox

Zetalase™ XLT can create expansive graphics and mark parts in minimal cycle time.

Get a Quote

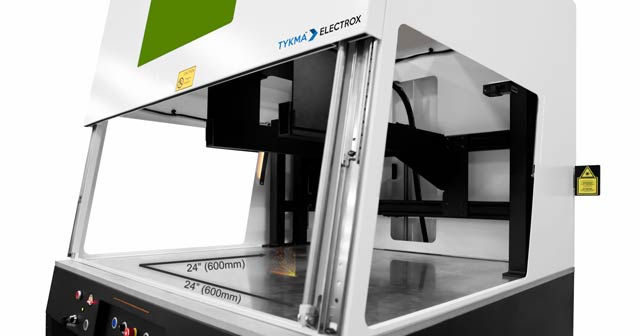

Zetalase XLT features a continuous marking field up to 24” x 24” (610mm x 610mm) while maintaining a small beam diameter with high energy output. This technology excels over traditional XY stage systems that require complex programming and high cycle times, due to indexing movements of the XY stage. Expansive graphics can be processed in one cycle without any tiling or stitching, and large trays or fixtures of parts can be marked in minimal cycle time.

System Features

  • Air-Cooled, Maintenance Free Design for Industrial Applications
  • MOPA Fiber Laser Engine from 20 to 50W with Selectable Waveforms
  • Front Vertical Pneumatically Actuated Part Loading Door with Built in Safety
  • Programmable Focal Height Adjustment
  • 24” x 30” T-Slot Work Surface and Heavy Duty Membrane Control Pendant
  • Integrated PC with Monitor/Keyboard/Mouse Mounted on an Ergonomic Gas Assisted Swing Arm
  • Side Access Panel with Ethernet, USB, and Service Connection Access
  • Auto Mode with Automatic Marking Start Upon Door Closure
  • Available with a Variety of Focal Lenses from 160mm to 420mm
  • Ideal for Marking all Metals, Carbide, Painted/ Anodized Materials & Most Plastics
  • Comprehensive 3-Year Warranty

Technical Specifications

System Dimensions 59″W x 66″L x 88″H / 1,650lbs
(mm) 1,504W x 1,672L x 2,235H / 748kg
Standard Marking Field 24″ x 24″ (610mm x 610mm)
Standard Max Part Size (160 Lens) 52″W x 36″L x 10″H or (mm)
1,321W x 914L x 254H
Available Marking Lens Upgrade and Marking Field N/A
Maximum Part Height with Lens Upgrade N/A
Laser Type Ytterbium Fiber
Wavelength (nm) 1062nm +/- 3nm
Wattage 70W
Pulse Duration

37 Selectable from 10ns to 520ns

Operative Ambient Temperature Range 7 – 36° C, 45 – 97° F
Frequency Range 1- 1,000kHz
Input Power Power Sensing 110-240VAC 50/60Hz
Aiming Beam (2) Class IIM Red Diode (635nm)
PC Integrated Windows PC
PC Connection N/A, PC Integrated
Available Ports Diagnostic/USB/VGA/Ethernet
Cooling Air Cooled
Warranty 36 Month Comprehensive
Unlimited Hours
Documentation

N/A
