BOFA Advantage 1000 IQ

BOFA Advantage 1000 IQ

By BOFA

BOFA's AD 1000 iQ laser fume extraction system is a mid to high end laser fume extraction system, which makes it ideal for heavy duty applications.

Get a Quote

AD 1000 IQ

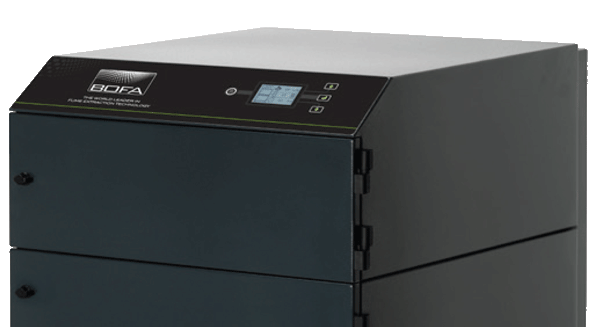

BOFA AD 1000 IQ Overview

BOFA’s AD 1000 iQ high end laser extraction system combines extremely large filter capacity with high airflow and pressure rates, making it the ideal choice for heavy duty applications that generate large amounts of particulate and gaseous organic compounds.

Performance has now been further enhanced with the inclusion of several new features including BOFA’s new iQ Operating System, making the new AD 1000 iQ one of the most advanced system available.

The iQ system takes performance and safety parameters to a new level and ensures that maintenance, downtime and ownership costs are kept to a minimum.

AD Base 1000 IQ Features

Standard Features
  • Filter condition display
  • Built in silencing
  • High airflow and pressure rates
  • Filters with long life and low replacement cost
  • Reverse flow filter technology
  • Automatic flow control system
  • DeepPleat DUO pre filter
  • Combined HEPA/Gas filter incorporating ACF technology
  • Real time airflow reading
  • Independent filter condition monitoring, display and warnings
  • High contrast display
  • ‘Run safe’ operation
  • Remote diagnostics via USB
Optional Features
  • VOC gas sensor (Volatile Organic Compound)
  • Remote stop / start interface
  • Smart Filter technology
  • Filter change / System fail signal
  • Interfacing with host laser
  • On-board compressor
  • Optional filter media’s

Technical Specifications

AD 1000 IQ Specifications
Dimensions (H x W x D) 47.1 x 23.6 x 31.1”
Cabinet Construction Brushed stainless steel /
Powder coated mild steel
Airflow / Pressure 500cfm / 100mbar
Electrical Data 115v 60/50Hz
Full load current: 14.8 amps / 1.1kw
Noise Level < 63dBA*
Weight 309 lbs.
Deeppleat Pre Filter Specifications
Surface Media Area 30m2 approx
Filter Media Glass Fiber
Filter Media Construction Maxi Pleat Construction with Webbing Spacers
Filter Housing Zintec mild steel
Filter Efficiency F8 (95% @ 0.9 microns)
Combined Filter Specifications k
Surface Media Area 7.5m2 approx.
HEPA Filter Media Glass Fiber
HEPA Media Contruction Maxi Pleat Construction with Webbing Spacers
Filter Housing Zintec Mild Steel
Treated Activated Carbon 75 lbs.
Filter Efficientcy 99.997% @ 0.3 microns
