BOFA Advantage Base 1 Oracle

BOFA Advantage Base 1 Oracle

By BOFA

The Laser Companion range has been designed so that a number of manufacturer's laser engravers can sit on top of the extractor, effectively doubling it up as a work station.

Get a Quote

AD Base 1 Oracle

BOFA AD Base 1 Oracle Overview

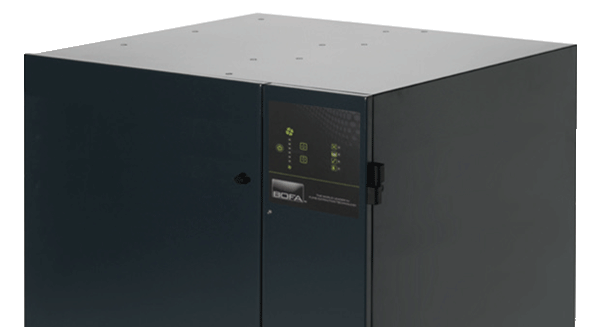

The Advantage Base 1 Oracle has been designed so that a number of manufacturer’s laser engravers can sit on top of the extractor, effectively doubling it up as a work station.

All the Base units in the range have the option of an onboard compressor for a compact installation. BOFA’s ‘Easi-Seal’ filter location makes filter change easy, quick and safe.

The revolutionary Auto-Voltage Sensing Turbine automatically self adjusts to run on any voltage worldwide, whilst the Reverse Flow filter technology enhances filter performance and ensures longer filter life.

Automatic Flow Control allows the user to preset correct flow rates, giving lower noise levels and further protection of both the combined filter and the DeepPleat DUO pre filter.

AD Base 1 Oracle Features

Standard Features
  • Filters with long life and low replacement cost
  • Low noise levels
  • Filter condition indicator
  • ‘Easi-Seal’ filter location
  • Auto sensing voltage (90-257v) for global use
  • Automatic flow control
  • DeepPleat DUO pre filter technology
  • Advanced Carbon Filter technology
  • HEPA and Gas combined filter
  • Reverse flow filter technology
  • Small footprint
Optional Features
  • VOC gas sensors (Volatile Organic Compound)
  • Onboard compressor
  • Remote stop / start interface
  • Filter change / System fail signal

Technical Specifications

AD Base 1 Oracle Specifications
Dimensions (H x W x D) 795 x 735 x 740mm (31.3 x 28.9 x 29.1”)
Cabinet Construction Powder coated mild steel
Airflow / Pressure 380m³/hr / 96mbar (223cfm / 96mbar)
Electrical Data 90 - 257v 1ph 50/60Hz Full load current: 12.5 amps / 1.1kw
Noise Level < 63dBA*
Weight 189lbs
Deeppleat Pre Filter Specifications
Surface Media Area 12m2 approx
Filter Media Glass Fiber
Filter Media Construction Maxi Pleat with webbing spacer
Filter Housing Zintec mild steel
Filter Efficiency F8 (95% @ 0.9 microns)
Combined Filter Specifications k
HEPA Filter Media Glass Fiber
HEPA Media Contruction Maxi Pleat Construction with Webbing Spacers
Filter Housing Zintec Mild Steel
Treated Activated Carbon 33 lbs
Filter Efficientcy 99.997% @ 0.3 microns
