BOFA Advantage Oracle IQ

BOFA Advantage Oracle IQ

By BOFA

The most advanced fume extraction solution for high performance laser systems.

Get a Quote

AD Oracle IQ

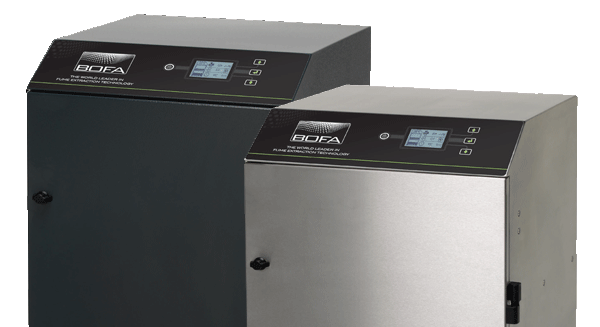

BOFA AD Oracle IQ Overview

The ‘Best in Class’ high performance AD Oracle laser fume extraction system has now been further enhanced with the introduction of BOFA’s new iQ Operating System, combining a range of unique features into one compact unit.

The iQ Operating System performs at two distinct levels. Whilst operators benefit from the ease of operation and clarity of real time information, the system also provides a cache of analytical data, enabling users to download performance and operating parameters for evaluation purposes.

The iQ Operating System takes performance and safety parameters to a new level and ensures that maintenance downtime and ownership costs are kept to a minimum.

AD Oracle IQ Features

Standard Features
  • Auto sensing voltage (90-257v) - For global use
  • DeepPleat DUO filter technology
  • Advanced Carbon Filter technology
  • iQ Operating System
  • Reverse flow filter technology
  • Automatic Flow Control system
  • High contrast display
  • Real time airflow reading
  • Independent filter condition monitoring
  • Filter status warnings
  • ‘Run safe’ operation
  • Remote diagnostics via USB
Optional Features
  • VOC gas sensor (Volatile Organic Compound)
  • Interfacing with host laser
  • On-board compressor
  • Optional filter media’s

Technical Specifications

AD Oracle IQ Specifications
Dimensions (H x W x D) 38.5 x 17 x 17”
Cabinet Construction Brushed stainless steel /
Powder coated mild steel
Airflow / Pressure 223cfm / 96mbar
Electrical Data 90 - 257v 1ph 50/60Hz Full load current: 12.5 amps / 1.1kw
Noise Level < 60dBA*
Weight 143 lbs.
Deeppleat Pre Filter Specifications
Surface Media Area 12m2 approx
Filter Media Glass Fiber
Filter Media Construction Maxi Pleat with webbing spacer
Filter Housing Zintec mild steel
Filter Efficiency F8 (95% @ 0.9 microns)
Combined Filter Specifications k
HEPA Filter Media Glass Fiber
HEPA Media Contruction Maxi Pleat Construction with Webbing Spacers
Filter Housing Zintec Mild Steel
Treated Activated Carbon 33 lbs
Filter Efficientcy 99.997% @ 0.3 microns
