Minilase Keon TYKMA fiber laser

Keon™ Fiber Laser Marking System

By TYKMA / Electrox

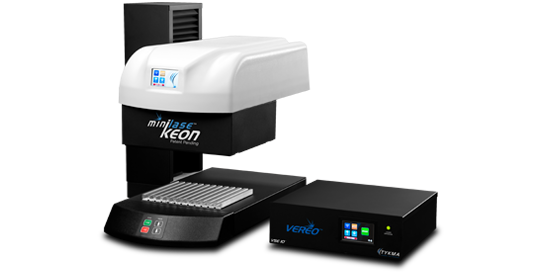

Minilase™ Keon Laser Marking System

Get a Quote

Minilase Keon™ takes laser marking innovation to the next level.

A revolutionary, patent-pending design provides users the flexibility to mark both small parts and large parts. A four-sided collapsible power shroud provides a protected Class 1 marking configuration. In addition, with password protected control, the system can be switched to a Class 4 workstation for large or irregular part configurations.

The sliding track system permits the safety shroud to move to the rear of the machine allowing full access to the large T-slot work surface. The system comes equipped with a laser control rack and an integrated touch panel interface for laser control. A secondary touch panel display on the front of the laser system provides constant machine feedback.

A USB connection to a laptop or desktop PC is all that is required to start programming with our Minilase™ Pro SE laser marking software. Quickly mark text, barcodes, serial and date codes, graphics and more. Utilize our micro or full size rotary device in Class 4 mode for 360° radial part marking.

With our Quick Start Guide, video tutorials and laser programming manual, Minilase Keon™ can be
setup and marking within minutes.

System Features

  • Air-Cooled Maintenance Free Industrial Design
  • Advanced MOPA Fiber Laser Engine from 10 to 30W with Selectable Pulse Durations
  • Class 1 or Class 4 Laser Mode Operation
  • Four-Sided Collapsible Power Shroud with Sliding Track System
  • Touchscreen Display for Machine Control and Laser Setup as well as Machine Function Feedback
  • Power Focal Height Adjustment with Easy Focus Finder
  • Ideal for Marking all Metals, Most Plastics, Painted/Anodized/Coated Materials and a Variety of Other Substrates
  • Comprehensive 3 Year Warranty

Technical Specifications

System Dimensions (Keon) 17″W x 31″L x 32″H
(Rack) 17″w x 15.75″L x 5.2″H
System Weight 160lbs (Keon)
50lbs (Rack)
Standard Marking field 100mm x 100mm (160S lens)
(3.93″ x 3.93″)
Available Marking Lens
Upgrade and Marking Fields
140mm x 140mm (254S Lens)
5.5″ x 5.5″
Standard Max Part Size (160S Lens) (Class 1 Mode) 13.5″W x 9.5″L x 5.625″H
(mm) 342W x 241L x 142H
(Class 4 Mode) 13.5″W x 9.5″L x 7.625″H
(mm) 342W x 241L x 193H
Maximum Part Height Lens Upgrade (Class 1 Mode) 1.5″/38mm
(Class 4 Mode) 3.5″/90mm
Laser Type Ytterbium Fiber
Wavelength (nm) 1062 +/- 3nm
Wattage 10W / 20W / 30W
Pulse Duration (10/20W) Selectable, 260ns or 40ns
(30W) 29 Selectable from 220ns – 15ns
Operative Ambient Temperature Range 45° F to 110° F
Frequency Range 1kHz – 500kHz (10/20W)
1kHz-1,000kHz (30W)
Input Power Power Sensing 110-240VAC 50/60Hz
Aiming Beam (2) Class 2M Red Diode 635nm
PC  Laptop/Desktop PC Required
(Not Included)
PC Connection USB
Available Ports Diagnostic
Cooling Air Cooled
Fiber Cable Length 2M
Warranty 36 Month Comprehensive
Unlimited Hours
Documentation

USB Drive / Quick Start Guide
Video Tutorials / Software Manual
Safety Manual / Laser Settings Manual
(All Manuals Provided in Digital Copy)
